[Advanced EV Technology Whitepaper] If you have ever owned an electric vehicle (EV) or seriously evaluated purchasing one, your primary anxieties almost certainly revolve around three operational pain points: range degradation in cold climates, slow charging speeds at peak thresholds, and thermal safety concerns.

Solid-state battery technology has long been hailed as the holy grail that will fully eliminate these limitations. But does the engineering reality match the marketing hype? How much will it actually improve real-world driving, and exactly how long must consumers wait? This technical analysis provides an honest, data-driven breakdown.

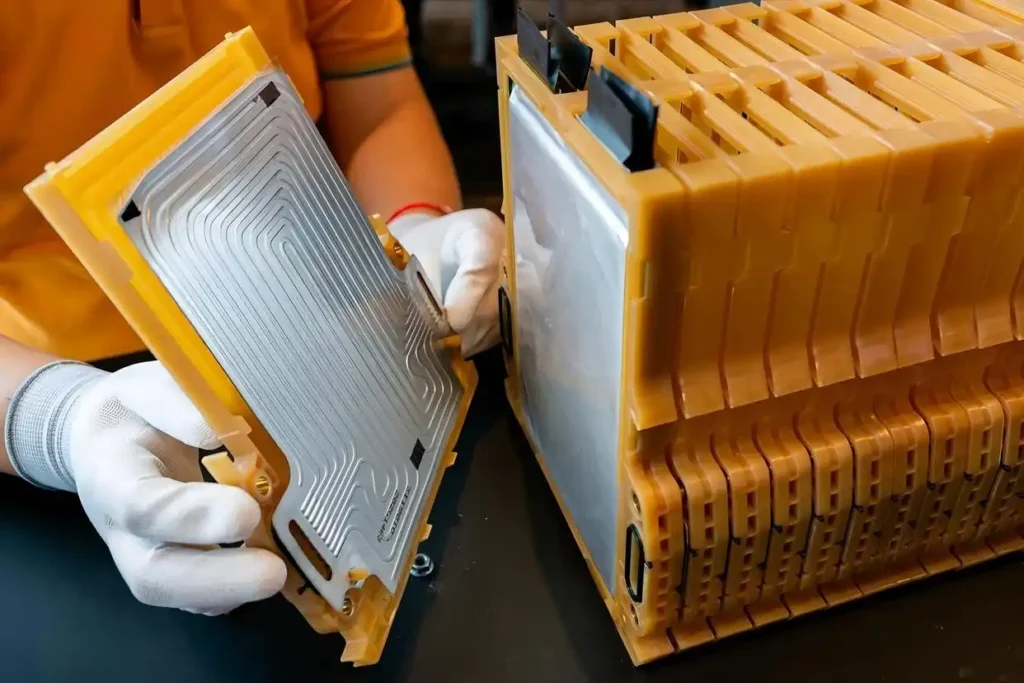

Timeline for the mass production of solid-state batteries

1. The Architectural Limitations of Modern Liquid Lithium-Ion Batteries

To understand the disruptive potential of solid-state chemistry, one must first identify the structural bottlenecks of the incumbent technology. Modern passenger EVs universally rely on liquid lithium-ion batteries. Their architecture is straightforward: a cathode (positive electrode), an anode (negative electrode), a porous separator, and a liquid organic electrolyte solvent.

While this setup has benefited from three decades of commercial optimization, it is constrained by three fundamental chemical laws:

Flammable Organic Electrolytes: The liquid solvents used today are highly volatile organic compounds. Under high thermal loads, internal short circuits, or physical puncture, these liquids undergo rapid thermal decomposition, leading to catastrophic thermal runaway (EV fires).
The Anode Material Ceiling: Conventional liquid batteries primarily use graphite anodes. Graphite carries a rigid theoretical specific capacity limit. The most ideal anode material is lithium metal, which boasts roughly ten times the theoretical capacity of graphite. However, when lithium metal reacts with liquid electrolytes, it forms needle-like structures called lithium dendrites. These dendrites easily pierce the separator, causing immediate internal short circuits and fires. Thus, lithium metal remains unusable in liquid cells.
Low-Temperature Viscosity: In freezing winter environments, liquid electrolytes experience an acute rise in viscosity. This sluggish ionic conductivity hinders lithium-ion transport, resulting in severe winter cruising range drops.

2. Solid-State Battery Principles: The Engineering Shift

The defining shift in solid-state architecture is singular: replacing the volatile liquid electrolyte with a dense, solid-state conductive matrix.Below is a diagram illustrating the fundamental changes in the core internal materials of lithium-ion batteries and all-solid-state batteries

This fundamental material substitution triggers a highly beneficial engineering chain reaction:

Elimination of Thermal Runaway: The absence of flammable liquid solvents drastically elevates the thermal runaway threshold, making the pack inherently fireproof.
Unlocking Lithium Metal Anodes: A sufficiently dense solid electrolyte acts as a mechanical barrier that suppresses the growth of lithium dendrites, finally making ultra-high-density lithium metal anodes commercially viable.
Expanded Operating Envelopes: Solid matrices are immune to sub-zero freezing and high-temperature evaporation, yielding vastly superior low-temperature capacity retention.

The Technical Catch: While solid-state chemistry looks perfect on paper, it introduces a severe physical barrier: solid-to-solid interface impedance. Transmitting lithium ions through a solid interface is drastically more difficult than through a fluid medium, presenting the primary engineering bottleneck of the industry.

3. Semi-Solid vs. All-Solid-State: Clearing the Industry Confusion

The global automotive market frequently conflates these two highly distinct evolutionary phases.

I. Semi-Solid-State Batteries (The Transitional Step)

The Chemistry: These are hybridized iterations of conventional liquid cells. They reduce liquid electrolyte volume by incorporating solid polymer or oxide electrolyte layers, but still retain a certain percentage of fluid to wet the electrodes.
The Pros & Cons: They can be manufactured on existing liquid-cell production lines with minimal re-tooling, making costs manageable. Energy density increases slightly (by roughly 15% to 30%). However, because flammable liquids remain present and pure lithium metal anodes cannot be safely integrated at scale, they remain a transitional product.
Market Status: Commercialized. Notable deployments include NIO’s 150 kWh battery packs and specific premium trim levels of the IM L6.

II. All-Solid-State Batteries (The True Goal)

The Chemistry: Completely devoid of liquid components. This is the absolute technical benchmark that allows the safe implementation of pure lithium metal anodes.
The Electrolyte Matrix: The industry is currently split across three primary solid electrolyte pathways, detailed in the matrix below:

Electrolyte Pathway	Representative Material	Core Technical Advantages	Critical Engineering Drawbacks
Oxide Matrix	LLZO (Garnet-type)	Exceptional chemical stability; high mechanical safety.	High structural brittleness; severe solid-solid interface contact resistance.
Sulfide Matrix	$Li_6PS_5Cl$ (LGPS)	Highest ionic conductivity (comparable to liquid); optimal flexibility.	Chemically unstable; reacts with moisture to release highly toxic hydrogen sulfide gas; requires extreme cleanroom environments.
Polymer Matrix	PEO-based systems	Highly flexible; easy to manufacture using existing processes.	Extremely poor ionic conductivity at room temperature; requires high internal pack heating to operate efficiently.

Currently, there is no universal industry consensus. Global automotive giants like Toyota, Panasonic, and Samsung SDI heavily favor the sulfide pathway. Chinese domestic manufacturers are split between oxide-sulfide hybrids, while select European OEMs remain focused on polymer applications.

4. The 4 Major Technological Bottlenecks Delaying Mass Production

The core science behind solid-state energy has been understood for decades, yet gigawatt-scale production remains elusive due to four profound engineering barriers:

1. Solid-Solid Solid Interface Contact Resistance

Unlike liquid electrolytes that effortlessly coat every microscopic crevice of an active electrode material, solids cannot naturally deform. This creates micro-gaps and defects at the contact boundaries. When an EV demands high current (such as during fast charging or hard acceleration), the internal resistance at these solid interfaces spikes, causing immediate performance degradation. Furthermore, during cycling, the lithium anode expands and contracts by up to 300%, continuously destroying the mechanical contact interfaces.

2. Low Volumetric Ionic Conductivity

While premium sulfide solid electrolytes can match liquid ionic conductivity ($10^{-2}\text{ S/cm}$), mainstream oxide variants hover around $10^{-4}$ to $10^{-3}\text{ S/cm}$. This slower internal ion movement directly throttles the battery’s fast-charging metrics and limits high-current discharge.

3. The Persistence of Micro-Dendrites

While solid matrices are mechanically tough, lithium dendrites can still exploit microscopic grain boundaries, cracks, or crystalline defects within the solid electrolyte under high current densities. Once a dendrite tunnels through, it causes a catastrophic internal short circuit.

4. Disruptive Manufacturing Cost and Low Yields

Conventional liquid cell assembly lines (coating, fluid injection, formation) are highly mature and cost-effective. All-solid-state manufacturing requires completely reimagining the assembly plant floor. Processing sulfide matrices requires hyper-dry cleanrooms with humidity levels tighter than advanced semiconductor fabs. Implementing dry-film electrode processing, high-pressure solid stamping, and high-temperature sintering currently results in ultra-low manufacturing yields, pushing production costs up to several times higher than liquid equivalents.

5. Global Mass Production Roadmap: Estimated Timelines

The current race to scale solid-state power features distinct regional timelines across major automotive hubs:

China Operations

CATL: Has targeting 2027 for small-batch pilot production of all-solid-state cells, aiming for an energy density threshold surpassing 500 Wh/kg. The chemistry remains undergoing strict validation.
BYD: Internal solid-state R&D projects are fully funded, with full industrialization anticipated around 2030. Engineering efforts lean toward sulfide-based architectures.
NIO & SAIC Group: Actively scaling semi-solid-state configurations as an immediate commercial buffer, while concurrently advancing secondary all-solid-state roadmaps.

International Operations

Toyota: Holds the world’s largest portfolio of solid-state battery patents. After multiple timeline revisions, its current target points to small-scale deployment in flagship vehicles by 2027–2028, with true gigawatt-scale manufacturing slated for 2030.
Samsung SDI: Targeting 2027 for pilot-line validation, with full commercial mass production projected for 2030.
QuantumScape & Solid Power: Backed by Volkswagen and BMW/Ford respectively, these North American startups are pushing forward with automated pilot lines, projecting initial low-volume automotive integration between 2026 and 2028.

6. The Honest Verdict: Will It Revolutionize Your Daily Driving?

To provide a pragmatic conclusion for prospective EV buyers, let’s separate long-term goals from immediate realities:

Cruising Range (Significant Long-Term Gains): Once all-solid-state cells utilizing lithium metal anodes mature past 500 Wh/kg, vehicle range will effectively double compared to current platforms. A true 1,000 km winter-resilient range will become the standard. However, initial production batches will likely see a more conservative 30% to 50% density bump over premium liquid packs.
Charging Speeds (Short-Term Bottleneck): Contrary to popular belief, early-generation all-solid-state batteries will actually feature slower fast-charging curves than premium liquid-electrolyte or semi-solid cells due to high interface resistance. Safety and raw energy density—not ultra-fast charging—will be their initial selling points.
Thermal Safety (Absolute Victory): This is where solid-state delivers a definitive solution. Eliminating liquid electrolytes allows engineers to remove bulky, heavy thermal cooling infrastructure from the pack, naturally reducing vehicle curb weight and maximizing overall packaging efficiency.

Buyer’s Advice for the Next Decade

2026 – 2027 Horizon: The premium market will remain dominated by advanced semi-solid-state packages and high-nickel liquid cells. Performance will step up incrementally, but do not expect a structural revolution.
2028 – 2030 Horizon: First-generation all-solid-state batteries will debut exclusively on ultra-luxury, low-volume flagship models at a massive pricing premium.
Post-2030 Horizon: Only after manufacturing supply chains achieve scale and processing yields stabilize will all-solid-state tech trickle down to mainstream commuter EVs, fundamentally altering the global consumer buying decision.

7. [FAQ] Solid-State EV Battery Quick Reference

Q1: What is the main difference between a semi-solid and an all-solid-state battery?
- A: Semi-solid batteries still retain a small percentage of liquid electrolyte to help conduct ions, making them a safer, higher-density upgrade of current tech. All-solid-state batteries completely remove all liquids, which is necessary to safely use ultra-high-capacity lithium metal anodes.
Q2: Will solid-state batteries charge faster than current EV batteries?
- A: Not initially. Because passing electric current through two solid surfaces creates high resistance, early all-solid-state batteries will likely charge slower than current top-tier liquid batteries. Their main early benefits will be fire safety and longer driving ranges.
Q3: When can the average consumer buy an affordable EV with a solid-state battery?
- A: While small-scale testing on luxury cars will start around 2027–2028, high costs and manufacturing challenges mean affordable, mass-market solid-state EVs are not expected to arrive until well after 2030.
